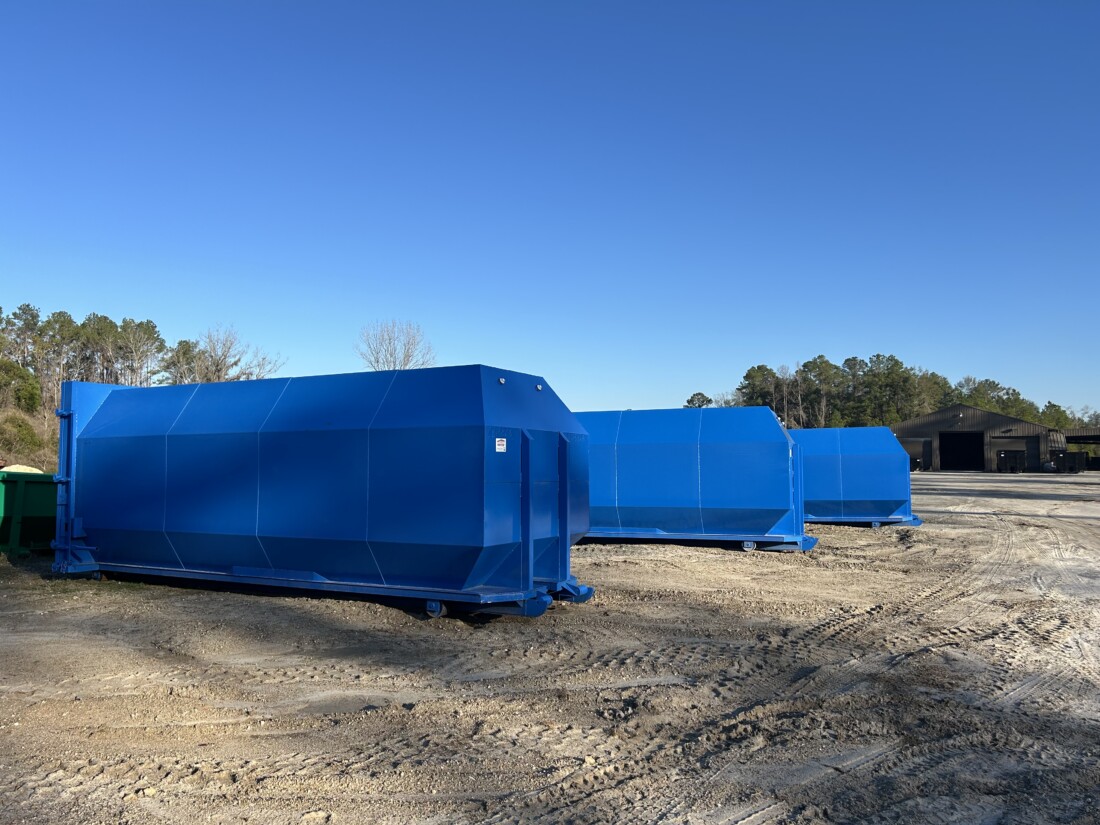

At American Made Dumpsters, we specialize in high-quality, American-built roll-off containers, including 40-yard receiver dumpsters (also known as compactor receiver boxes or containers). These heavy-duty units are designed specifically for use with stationary compactors in high-volume waste applications, such as industrial facilities, transfer stations, distribution centers, and large commercial operations. Unlike standard open-top roll-off dumpsters, receiver dumpsters are paired with a compactor that pushes compressed waste through a front opening into the container—no top loading or side doors are typically used.
The rear door serves a critical role: it provides a secure seal during compaction and transport, while allowing full access for emptying the container at the landfill or disposal site. Below, we’ll break down the key features of the rear door on our 40-yard receiver dumpsters, including the door design, latches, hinges, and compactor receiver opening.

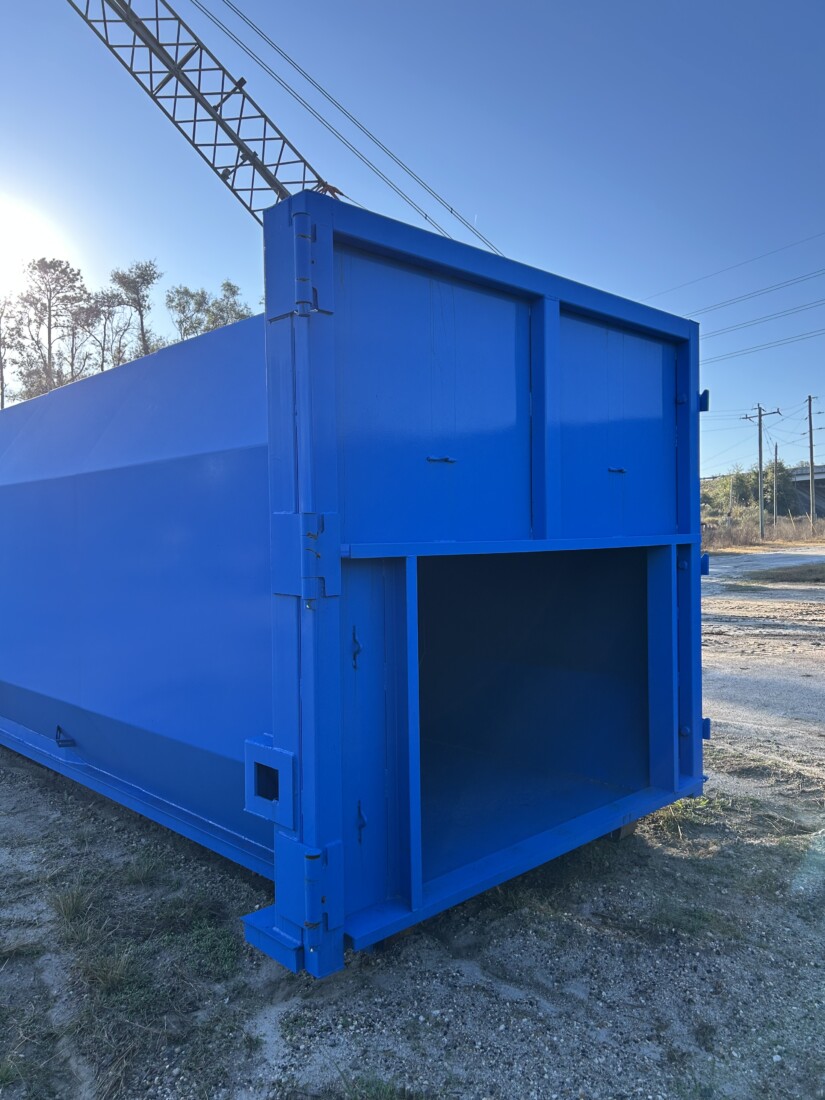

Rear Door Design
- The rear door is a full-swing, single-panel gate constructed from heavy-gauge steel (typically 7-gauge or 3/16″ plate) reinforced with structural tubing and channels for maximum durability.
- It spans nearly the full width and height of the container (often around 7-8 feet tall and 8 feet wide), creating a watertight seal with heavy-duty rubber gaskets to contain liquids and prevent leaks during transport.
- The door swings outward on heavy-duty hinges, allowing the entire load to be dumped efficiently when opened.

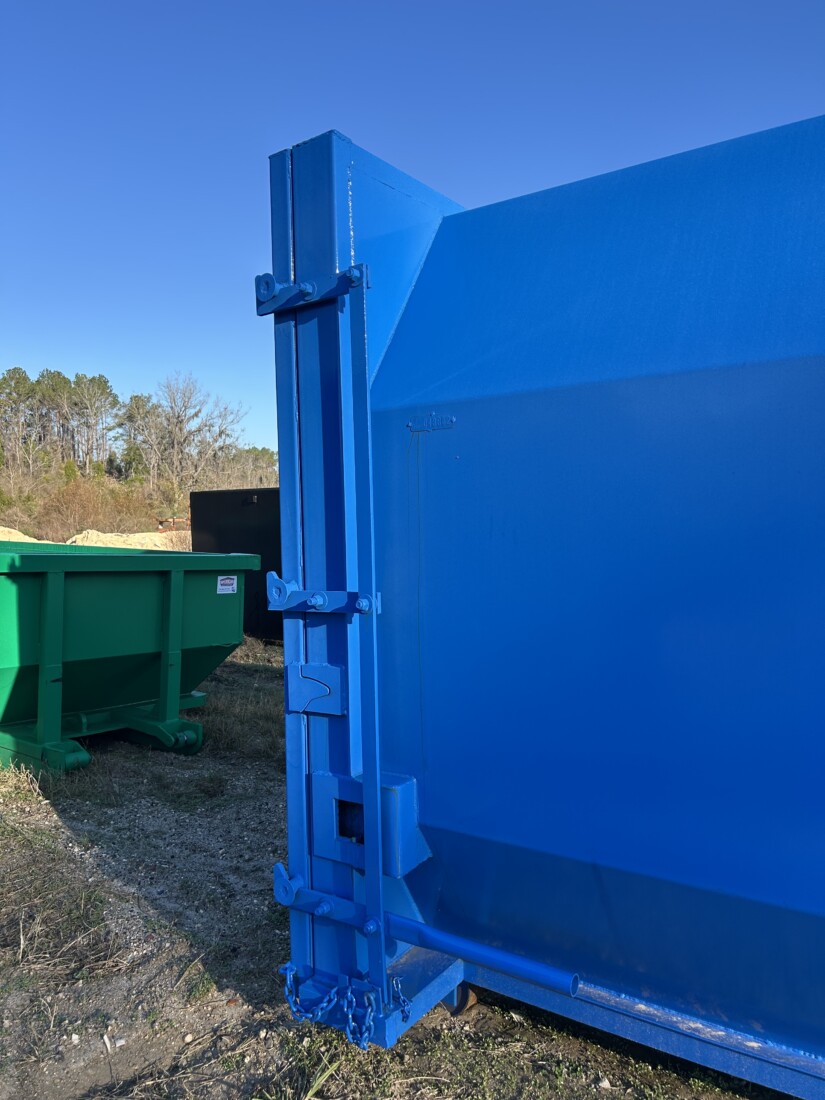

Door Latch System
- Our 40-yard receiver dumpsters feature a reliable ratchet-style binding latch system, a proven design that securely closes and seals the door.
- The ratchet mechanism uses a heavy-duty binder (similar to those on cargo straps) to tighten the door against the container body, ensuring a tight compression seal and preventing door bounce during hauling.
- Latches are positioned for operator safety (often on the driver’s side) and include safety chains or lock pins for added security during transport.
- This system is easy to operate, adjustable, and built to withstand repeated use in demanding environments—ratchet latches automatically engage in some configurations for convenience.
Hinges
- Heavy-duty plate or piano-style hinges support the full weight of the door, typically made from 1/2″ or thicker steel with large pins (1.5″ diameter or more).
- Multiple hinges (often 3-4 per door) are welded to both the door and container sidewall for even weight distribution.
- All hinges include grease fittings (zerk fittings) for easy maintenance, ensuring smooth operation and longevity even under heavy loads and frequent opening/closing.
Compactor Receiver Opening

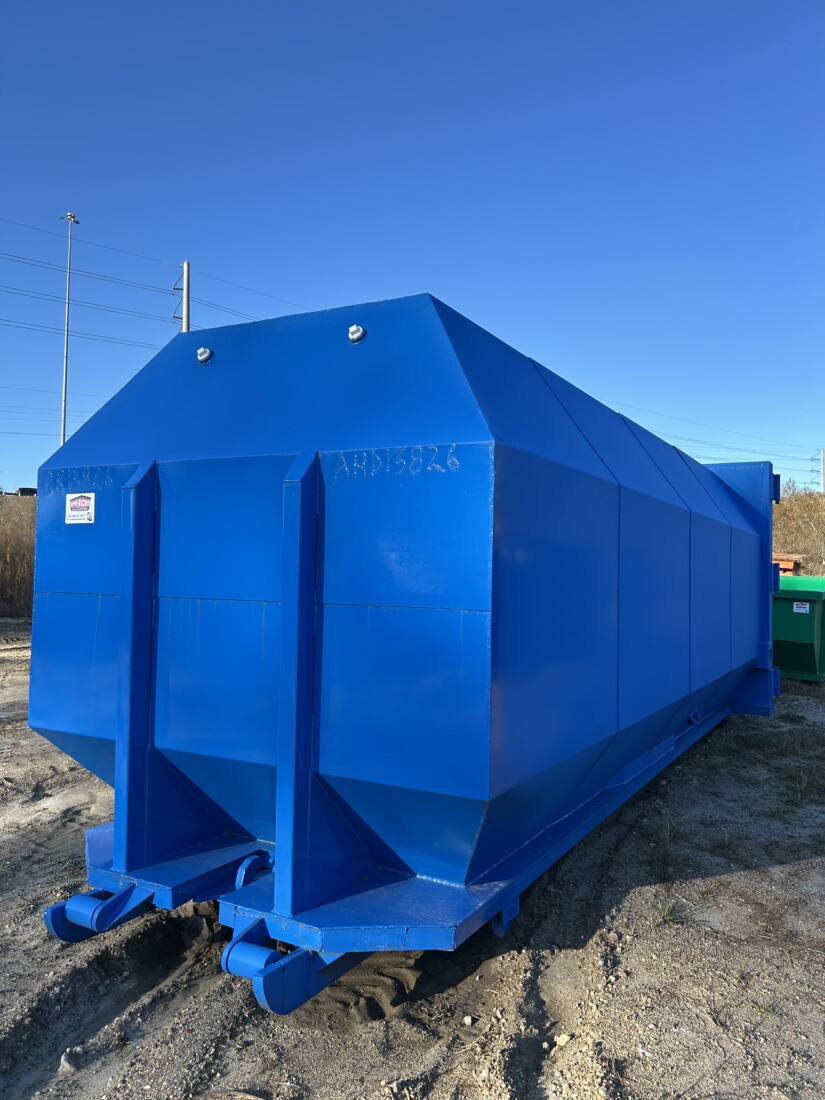

- The front of the receiver dumpster (opposite the rear door) features a dedicated compactor interface opening, sized to match standard stationary compactors (commonly around 46-64 inches high by 64 inches wide, depending on model).
- This sealed opening includes a reinforced nose or bullnose for smooth docking with the compactor unit, along with heavy rubber seals to prevent leakage during the compaction cycle.
- Waste is pushed directly through this opening—no rear access is needed for loading, which maximizes efficiency and safety in compactor operations.
Why Choose American Made Dumpsters’ 40-Yard Receiver?
Our receiver dumpsters are built tougher with premium American steel, full welding, and customizable options to fit your specific compactor (e.g., hook lift, cable hoist compatibility). They promote maximum compaction density, reducing haul frequency and costs.
If you’re ready to upgrade your waste management setup or need a custom 40-yard receiver dumpster, contact us today for a quote. Proudly made in the USA for lasting performance!
